Technical data detail:

Application:

AD22 series mini volt meter used to two wire three way AC/DC digital volt meter.

1).Products are used in 2.5 inches long life LED digital tube display with compact square enclosure, convenient installation

2).Product measure range is AC80~500V and DC8~150V, 50/60Hz

3).Product is used two wire system, AC connection is null line and fire line directly.

Working condition:

Ambient temperature: -10℃~55℃

Air relative humidity: 10~80%

Working pressure: 80~106kpa

Working current: ≤20Ma

Measure accuracy class: 1.0

Measure rate: ＞200ms/time

Mounting hole size: 22mm

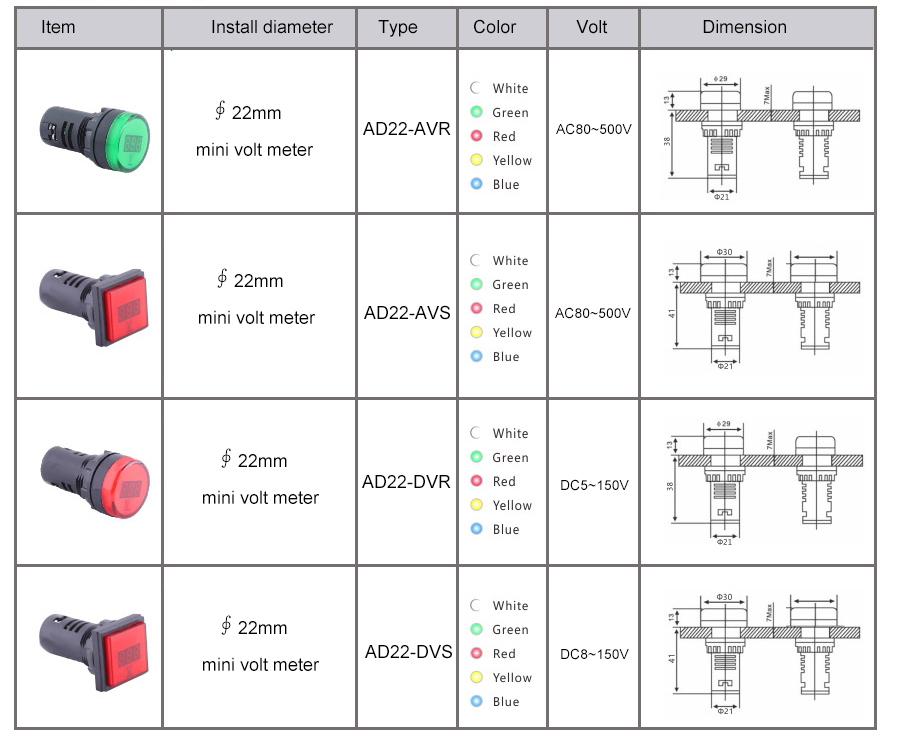

Mini volt meter parameter sheet and dimension:
