Technical data detail:

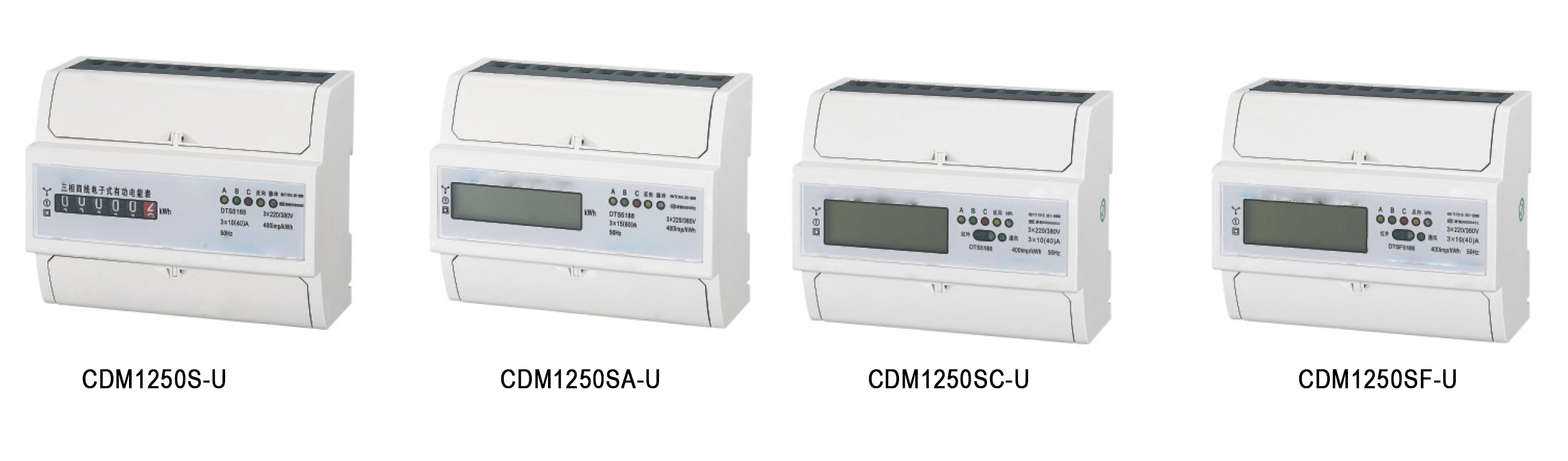

CDM1250-U Series 3 phase 4 wire din rail meter

1. Application:

CDM1250-U Series din rail installation energy meter is researched and developed by CHIQI electric. It adopt microelectronics technology and import large-scale integrated circuits and the application of advanced digital sampling processing technology and SMT process, we have our own copyright, it is the new model and lowest mass single phase two wire meter.The quality and performance is complied with GB/T17215.321-2008.It has feature of high stable, small mass, light weight, ingenious design.

2. Function and feature

• 35mm standard din rail installation, it is according to DIN EN50022 standard

• Ten pole width( modular 1250mm), according to DIN43880 standard

• Standard counter display (5+1 digital) and(6+1 digital) and LCD display

• Standard pulse output(with anode),free connection with all kinds of AMR, according to IEC62053-21 and DIN43846+

• RS485 communication entrance, the communication agreement is DL/T645-1997 or MODBUS-RTU.

• It can measure energy power electricity, voltage, current, power rated, power factor, frequency, etc.

• Double LED indicator display power state (green light) and pulse signal (red light)

• Test loading current towards automatically and indicate(when red LED working, if without green LED indicate power, this is the towards for loading current towards)

• It is programmable for 4 tariff rate, ten times range, Outlay clock core, it has the function of calendar，reckon by time,anniversary change over automatically.

• Measure one way three phase four wire energy consumption, it is none of business with load current way. The performance is according to GB/T17215.321-2008

• Five LED indicator, electric power state (A,B,C), reverse, with energy pulse signal (red)

• Standard element U type connection

• Short protection cover, decrease the space of installation, suit to centralized installation

 3. Main parameter:

4. Function selection

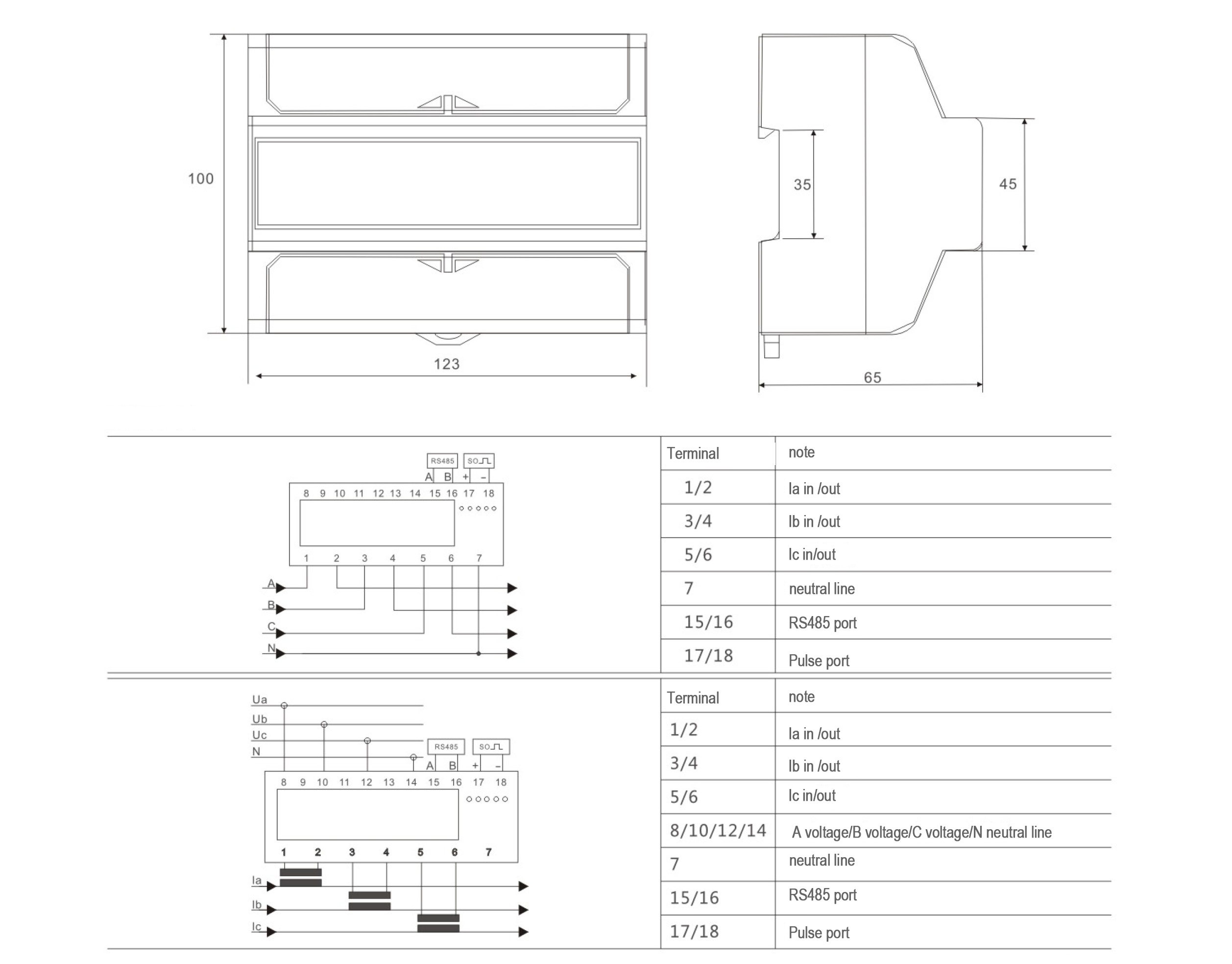

5.Outer dimension and outer diagram
