PG nylon cable gland
Material: made from PA66 with waterproof rubber ring.
Feature:
1).Special design of clamp ring, good clamping strength and protective for electric machinery.
2).No need of disassembling the cable gland, cable can go through directly then tighten it. it is easy to operate and save time.
3).Application for machinery control box, distribution plate, machine and electrical, etc.

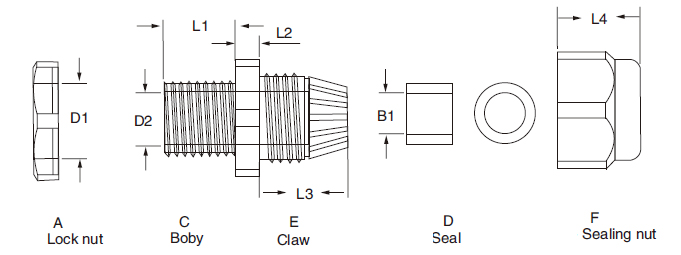

Drawing:
Specification sheet:
| Item NO. | D1(mm) | D2(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | B1(mm) | Cable range (mm) |
| PG-07 | 12.1 | 8.7 | 8.3 | 5 | 15.0 | 13.8 | 6.9 | 3.5~6 |
| PG-09 | 16.2 | 11.1 | 8.7 | 4.6 | 16.1 | 15.7 | 8.9 | 4~8 |
| PG-11 | 18.8 | 13.4 | 8.7 | 5.1 | 18.1 | 17.9 | 11.3 | 5~10 |
| PG-13.5 | 20.1 | 15.5 | 8.9 | 5.0 | 19.2 | 18.3 | 12.8 | 6~12 |
| PG-16 | 22.3 | 17.6 | 11.3 | 5.2 | 20.2 | 18.1 | 13.7 | 10~14 |
| PG-19 | 24.1 | 19.1 | 11.1 | 5.1 | 21.1 | 20.5 | 15.8 | 12~15 |
| PG-21 | 26.7 | 21.4 | 11.1 | 5.1 | 23.0 | 22.0 | 17.4 | 13~18 |
| PG-24 | 30.1 | 24.8 | 12.8 | 5.8 | 23.9 | 23.7 | 23.1 | 15~22 |
| PG-29 | 35.9 | 29.8 | 11.9 | 6.9 | 24.4 | 23.5 | 25.3 | 18~25 |
| PG-36 | 46.4 | 39.1 | 16.0 | 7.8 | 30.7 | 27.3 | 31.9 | 22~32 |
| PG-42 | 53.9 | 46.7 | 15.4 | 7.9 | 33.2 | 18.5 | 37.1 | 30~38 |
| PG-48 | 60.2 | 52.6 | 18 | 7.9 | 35.5 | 30.3 | 45.1 | 34~44 |
| PG-63 | 70.6 | 63.9 | 28.9 | 8.9 | 41.4 | 41.3 | 49.3 | 42~54 |
