1. Application:
The busbar can enlarge the circuit breaker connection area, reduce the temperature higher, so that increase electrical wire reliability.
2. Feature:
Material: PVC with fire-resistance and purple cooper terminals
Rated current : up to 63A
Rated voltage : up to 415V
Ambient temperature: -25~+50
Standard size :1.5mm thickness, 10mm width, 2500px length
3. Technical data:

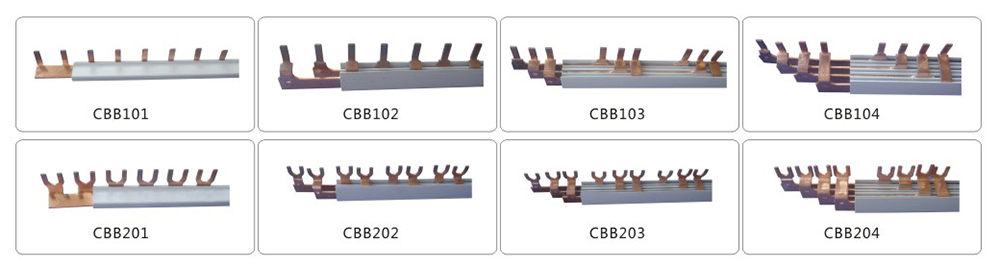

Model | Type | Pole | Rated current | Thickness (mm) | Width (mm) | Length (cm) |
CBB101 | pin | 1P | 63A | 1.5 | 10 | 100 |
CBB102 | pin | 2P | 63A | 1.5 | 10 | 100 |
CBB103 | pin | 3P | 63A | 1.5 | 10 | 100 |
CBB104 | pin | 4P | 63A | 1.5 | 10 | 100 |
CBB201 | fork | 1P | 63A | 1.5 | 10 | 100 |
CBB202 | fork | 2P | 63A | 1.5 | 10 | 100 |
CBB203 | fork | 3P | 63A | 1.5 | 10 | 100 |
CBB204 | fork | 4P | 63A | 1.5 | 10 | 100 |
