Application:
ZJK125A series emergency power-off switch adopts mechanical limit design and uses red mushroom head handle to control the switch on and off. The product design is compact and reliable. It is widely used in battery vehicles, electric forklifts, electric vehicles, excavators and other DC. The power system is used to disconnect the power supply in an emergency to prevent accidents from spreading and spreading.
Ordering Notice:
For example: ZJK125A
Emergency power off switch with Rated voltage not
| Basic Technical Parameters (at normal conditions) | |||
| Electric Parameters | |||
| Contact type | One pair of bridge type | Instantaneous maxi (closing) current | 600A, ≤1s |
| Rated voltage of contacts (DC) | ≤80V | Insulation resistance(MΩ) | DC500V, ≥100 |
| Rated current of contacts (A) | 125 | Dielectric withstand voltage | 1500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80 (at 100A) | Electric cycles (≥20000) | ≥1 |
| Operational form | Manual | Mechanical cycles (≥300000) | ≥2 |
| Disconnect thrust F1(N) | 20.0≤F1≤30.0 | Temperature rise on outgoing terminal | ≤65 |
| Closed pull force F2(N) | 20.0≤F2≤30.0 | Material of contact | AgCuO(10)/Cu |
| Normal closing time (ms) | ≤100 | Working duty | Continuous operating duty |
| Normal disconnection time (ms) | ≤50 | ||
| Mechanical/Ambient Conditions | |||
| Torque of outgoing terminal on contact M8(N.m) | ≯8.5N appropriate | Protection grade | IP50 |
| Torque of outgoing terminal on coil M5(N.m) | ≯2.0N appropriate | Mounting methods | Freely |
| Working temperature | (-25~+55)°C | Vibration | Sine shock: 2.5g, (5~50) Hz |
| Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) |

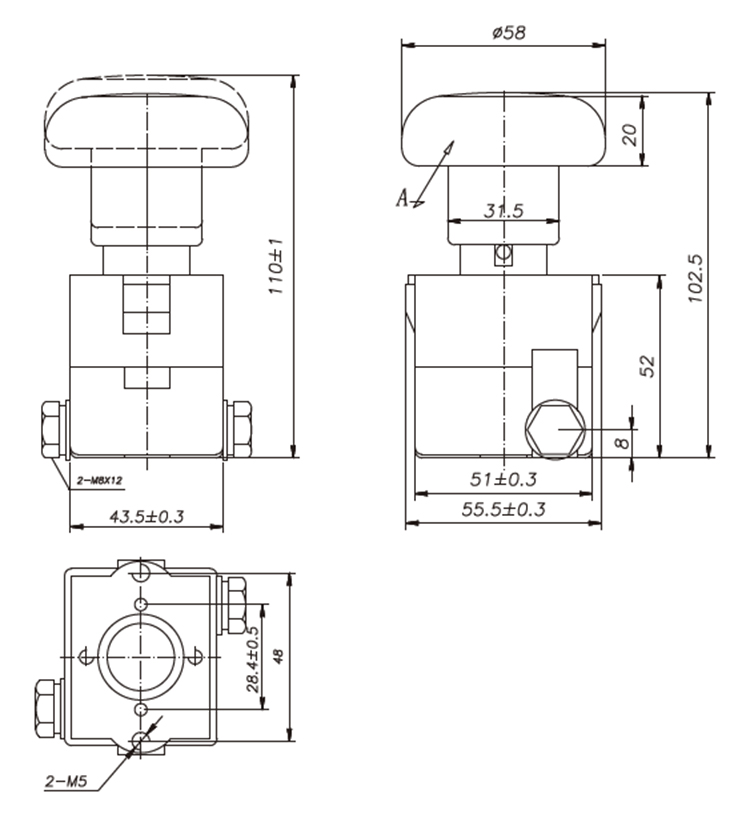

Outline and Mounting Picture:
