Technical data detail:

1. Application:

HMC modular contactor is applicable to alternative circuit with rated voltage up to 400V, rated current up to 24A and rated frequency 50/60Hz product circuit.

2. Construction and Feature:

Compact and modular design

Electro-magnetic mechanism free of noise

Contact position indication

Big contact capacity and long endurance

3. Technical data

Rated current: 16A, 25A, 40A, 63A

Rated voltage: 220V/2P,400V/4P

Rated frequency: 50/60Hz

Control voltage: 24V, 220V-240V

Mechanical endurance:100,000 cycles

Electrical endurance:30,00 cycles

Ambient temperature: -25~+60

Connection terminal: pillar terminal with clamp

Installation type: standard din rail

4. Contact form

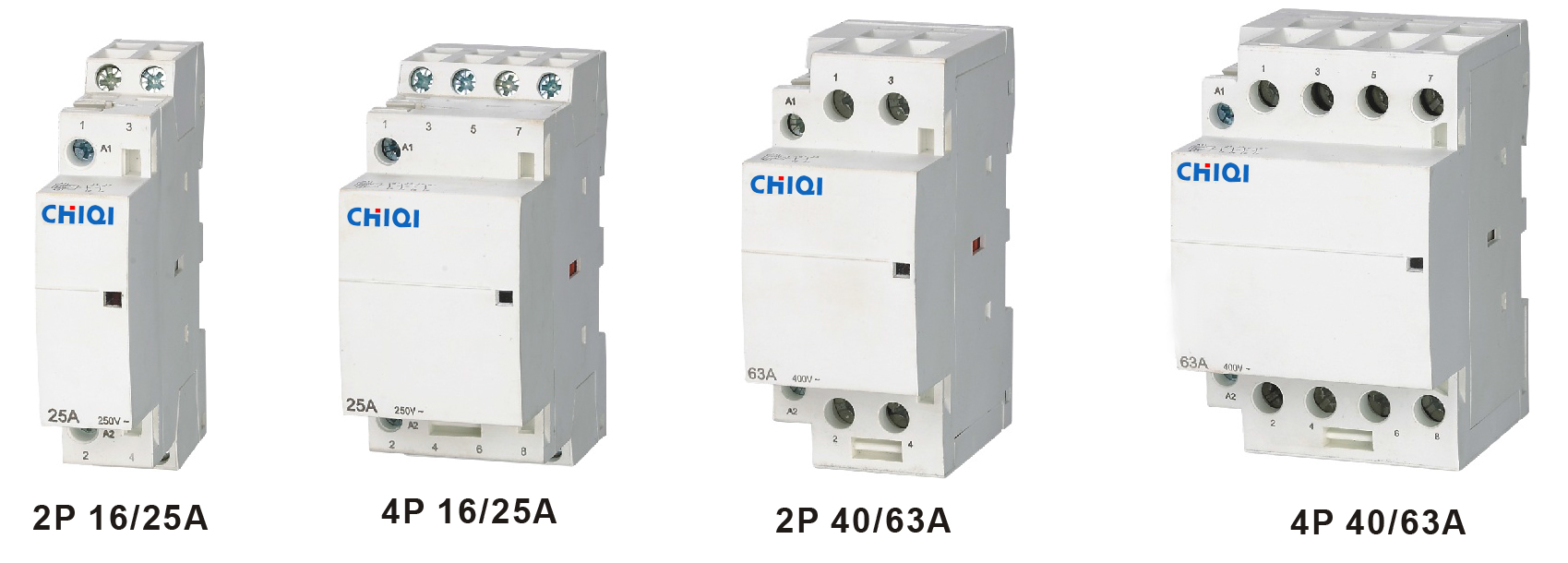

2P: 2N.O; 2N.C; 1N.O+1N.C

4P: 4N.O; 4N.C;3N.O+1N.C; 2N.O+2N.C

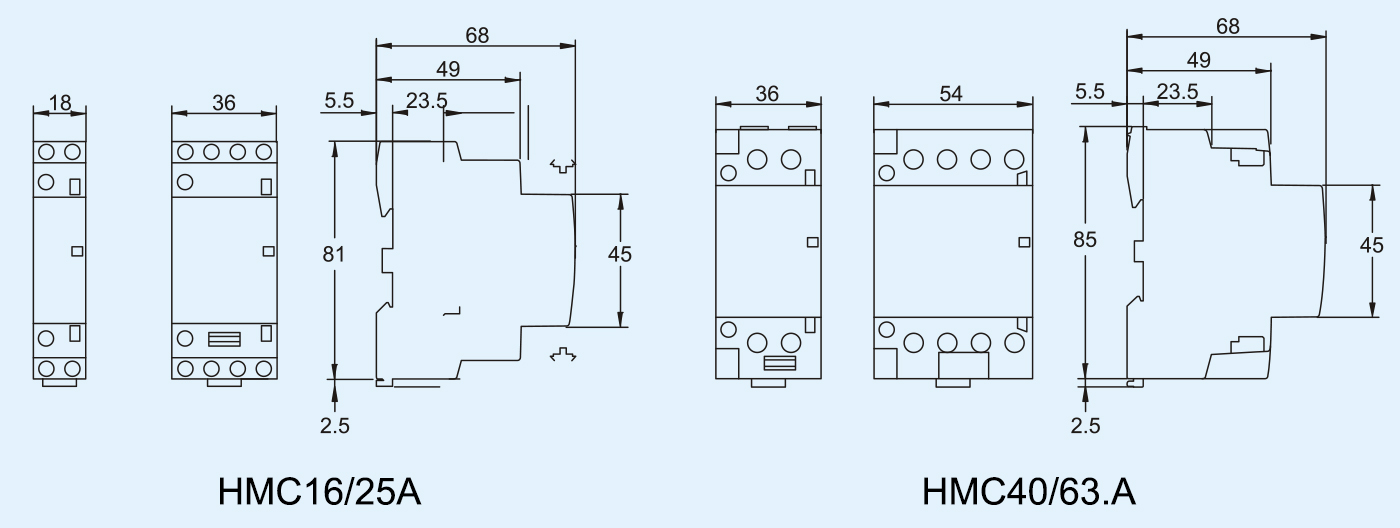

5. Diagram and dimensions (mm)
