| Wire section area | Item NO. | AWG | Screw dia. d2(mm) | Dimension | Color | ||||

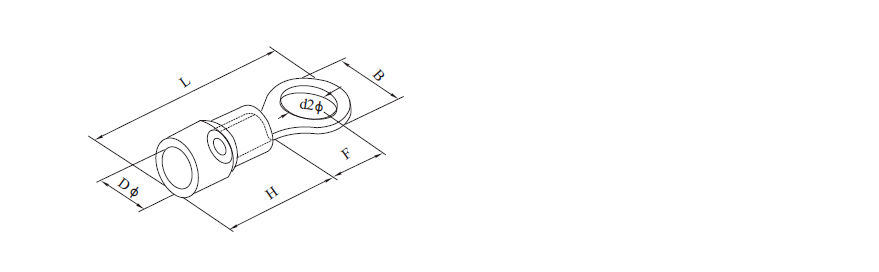

| B (mm) | L (mm) | F (mm) | H (mm) | D φ (mm) | |||||
0.5~1.5mm² (22-16AWG) Imax=19A | RV1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | red |
| RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | ||||
| RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | ||||
| RVL1.25-3.5 | #6 | 3.7 | 8.0 | 21.5 | 7.0 | ||||
| RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | ||||
| RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | ||||
| RV1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | ||||
| RV1.25-6 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | ||||
| RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | ||||
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | ||||
1.5~2.5mm² (16~14AWG) Imax=27A | RV2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | blue |
| RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | ||||
| RVM2-3.5 | #6 | 3.7 | 6.6 | 21.0 | 7.0 | ||||
| RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | ||||
| RVS2-4 | #8 | 4.3 | 6.6 | 21.0 | 7.0 | ||||
| RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | ||||
| RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | ||||
| RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | ||||
| RV2-6 | 1/4 | 6.5 | 12.0 | 27.6 | 11.0 | ||||
| RV2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11.0 | ||||
| RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | ||||
2.5~4mm² (14~12AWG) Imax=37A | RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 | black |
| RVS3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | ||||
| RVL3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | ||||
| RV3.5-6 | 1/4 | 6.5 | 12.0 | 27.9 | 7.7 | ||||
4~6mm² (12~10AWG) Imax=48A | RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | yellow |
| RVS5.5-4 | #8 | 4.3 | 7.2 | 21.5 | 5.9 | ||||
| RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | ||||
| RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | ||||
| RV5.5-6 | 1/4 | 6.5 | 12.0 | 31.5 | 13.0 | ||||
| RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | ||||
| RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | ||||
| RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 | ||||
