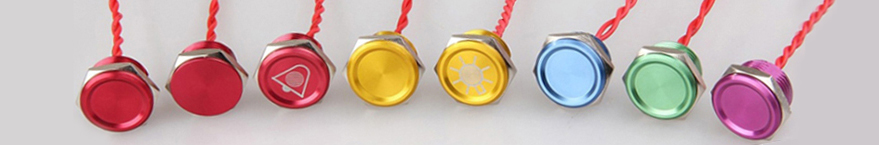

IP68 piezo switch
Application:
Industrial equipment control
Swimming pool
Medical appliance
Emergency calling system
Elevators panels
Characteristics of piezo switch
IP68 waterproof protection
Works in hard conditions -40℃~+70℃
long life expectancy (more than one million cycles), no moving parts, maintenance free
No polarity considerations for the wiring the switch
Can be operated with fingers, gloves and through elastomeric overlays
Heavy duty, non-magnetic, corrosion resistant for both indoor and outdoor use purpose.
Specificaiton and parameters:
| Piezo Switch type | PS-16 | PS-19 | PS-22 | |
| Installation diameter | 16mm | 19mm | 22mm | |
| Front shape | round | round | round | |
| Terminal type | pin with wire | pin with wire | pin with wire | |
| Protection degree | IP68, IK10 | IP68, IK10 | IP68, IK10 | |
| Material | Contact | silver alloy | silver alloy | silver alloy |
| Button | Aluminium Stainless steel | Aluminium Stainless steel | Aluminium Stainless steel | |
| Case | Aluminium Stainless steel | Aluminium Stainless steel | Aluminium Stainless steel | |
| Lamp | Type | Ring LED | Ring LED | Ring LED |
| Rated voltage | 24V /DC | 24V /DC | 24V /DC | |
| Lamp color | red, green,yellow black,blue,pink orange, BI white | red, green,yellow black,blue,pink orange, BI white | red, green,yellow black,blue,pink orange, BI white | |
