Technical data detail:

Feature:

1:One button clamp-on design, safe, easy to install, portable
2:Two built in fixing methods: Base; Busbar mounting
3:Wide inner window, allowing clamping of big cables or bus-bars
4:Wide range of sizes to accommodate all the existing installations.
5:Primary current from 5A to 5000A

Applications:

1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system,air-condition equipment and automation-control system.

3:Current, power and energy monitoring device.
4:Relay protection device.

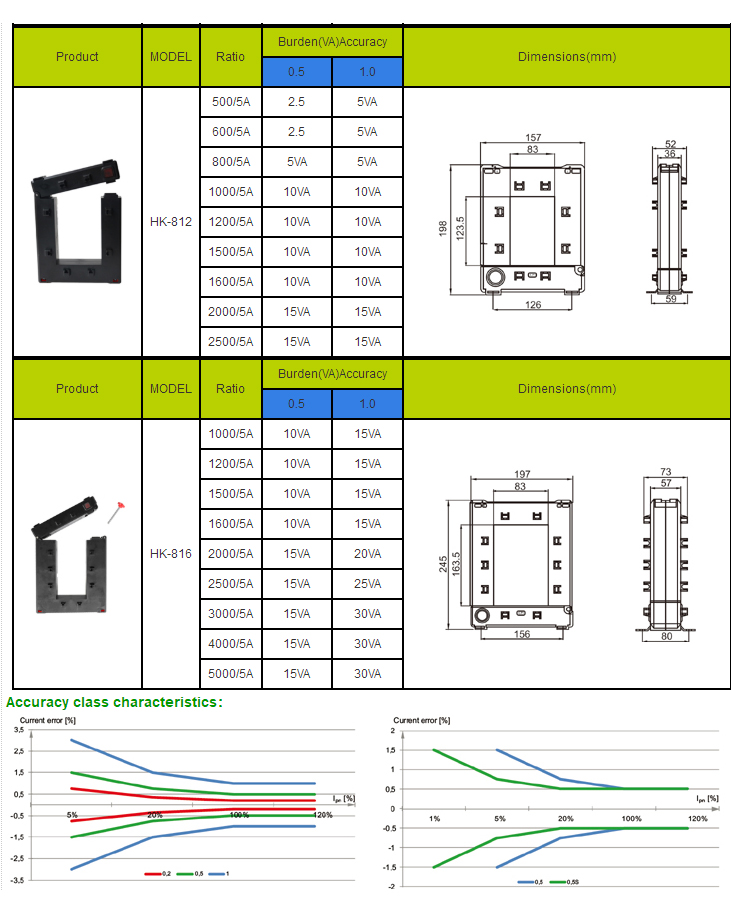

Technical data:
