ZMPT101 current transformer mainly for electronic meter PCB soldering

Technical data detail:

model	ZMPT101
primary current	2mA
secondary current	2mA
turns ratio	1000:1000
phase angle error	≤20＇（input 2mA，sampling resistor 100Ω）
linear range	0~1000V 0~10mA（sampling resistor 100Ω）
linearity	≤0.2%(20%dot~120%dot)
Permissible error	-0.5%≤ f ≤0（input 2mA，sampling resistor 100Ω）
isolation voltage	4000V
application	voltage and power measurement
Same polarity	1、3pin
Encapsulation	Epoxy
installation	PCB mounting
operating temperature	-20 ℃~+200 ℃ (suit to wave sordering)

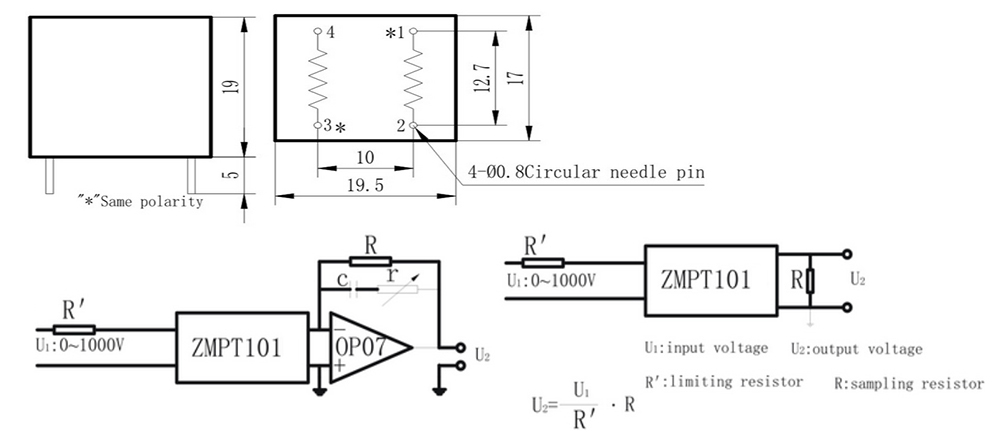

Diagram and working procedure:
