Technical data detail:

Application:

BH-100  indoor current transformer is casting resin insulated.  It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50/60Hz rated voltage 0.6kV.

Operation condition:

• Altiude is no more than 1000m.
• The maximum change of surrouding temperature is no more than -30~+40°C.
• Universal product is only used in the area with less than 85% relative humidity.
• Installation field had no serious effect transformer insulated, steam, chemical

  deposition, dust foul and other explosive and corrosive medium, and the field without

  serious shake and bump.

Specification:

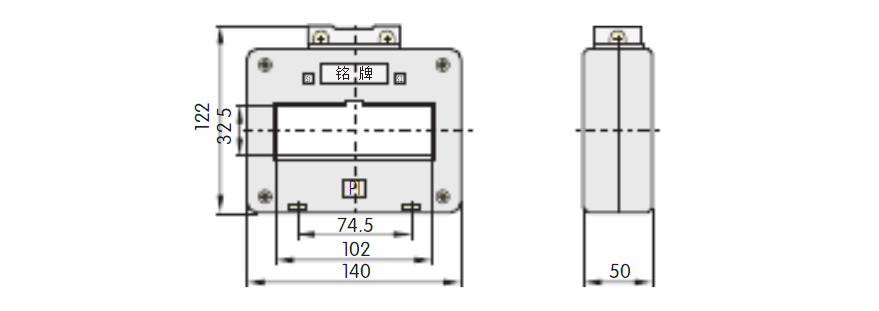

Dimension:
