Application:
Operation temperature: -40~140℃
Material: BMC (bough moulding compound)
SMC (sheet moulding compound)
Insert material: brass, iron, aluminium
Note: the insert material proformance, color and screw type can be order by customer
metric, English, American screw is available.

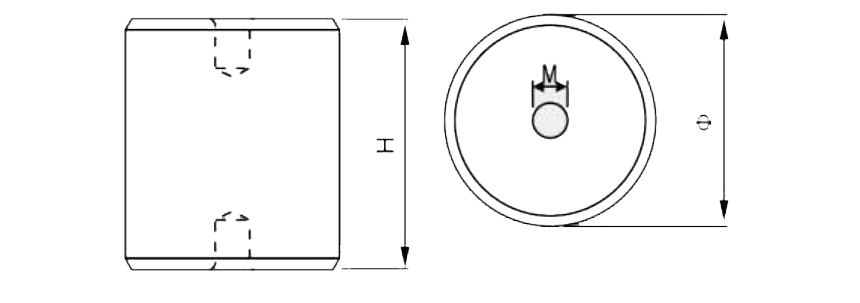

Specification:
TYPE | A/F | SPECFICATION | ||||||||
H (mm) | screw (mm) | Screw depth (mm) | ||||||||
MNS16 | ∮16 | 20 | 25 | 30 | 35 | 40 | M6 | 8 | ||
MNS20 | ∮20 | 20 | 25 | 30 | 35 | 40 | M6 | 8 | ||
MNS25 | ∮25 | 25 | 30 | 40 | 50 | M6 | 9 | |||
MNS30 | ∮30 | 30 | 40 | 50 | 60 | M8 | 9 | |||
MNS40 | ∮40 | 40 | 50 | 60 | 70 | 80 | M8/M10 | 12 | ||
MNS50 | ∮50 | 50 | 60 | 70 | 80 | 40 | M8/M10 | 15 | ||
MNS60 | ∮60 | 60 | 70 | 60 | 70 | 80 | M10/M12 | 15 | ||
MSN70 | ∮70 | 70 | 80 | 90 | 100 | 110 | M14/M16 | 18 | 22 |
