19mm stainless steel push button switch (pin connection type)
Technical data sheet

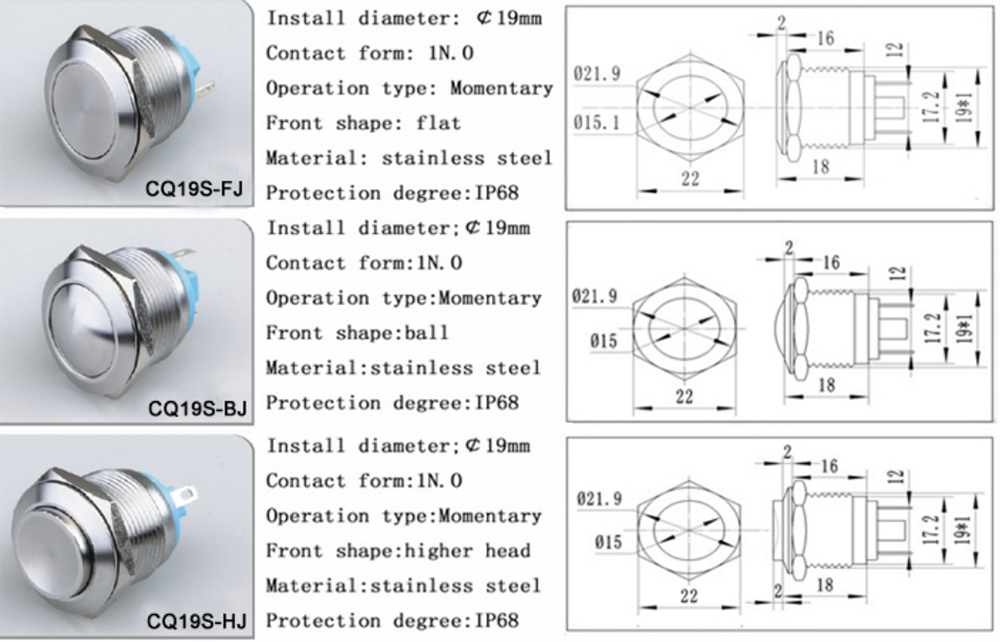

| SPECIFICATION | CQ19S-FJ | CQ19S-BJ | CQ19S-HJ |
| Terminal type: | Pin terminal 2x0.5mm | Pin terminal 2x0.5mm | Pin terminal 2x0.5mm |
| Switching: | NO.1 | NO.1 | NO.1 |
| Max switch rate | 5A / 250VAC | 5A / 250VAC | 5A / 250VAC |
| Contact resistance | ≤50mΩ | ≤50mΩ | ≤50mΩ |
| insulation resistance | ≥1000mΩ | ≥1000mΩ | ≥1000mΩ |
| Dielectric intensity | 2000VAC | 2000VAC | 2000VAC |
| Operation temperature | -30℃ to +50℃ | -30℃ to +50℃ | -30℃ to +50℃ |
| Mechanical life | 1,000,000 times | 1,000,000 times | 1,000,000 times |
| Electrical life | 200,000 times | 200,000 times | 200,000 times |
| Panel thickness | 1-10mm | 1-10mm | 1-10mm |
| Torque | 4-15N | 4-15N | 4-15N |
| Operation pressure | about 4N | about 4N | about 4N |
| Operation travel | 1.8MM | 1.8MM | 1.8MM |
| IP degree | IP67 | IP67 | IP67 |
| Contact point | silver plated gold | silver plated gold | silver plated gold |
| Button material | stainless steel | stainless steel | stainless steel |
| cooper chrom-plated | cooper chrom-plated | cooper chrom-plated | |
| Body material | stainless steel | stainless steel | stainless steel |
| cooper chrom-plated | cooper chrom-plated | cooper chrom-plated | |
| Base material | PC | PC | PC |
| RoHs | made to order | made to order | made to order |
