Application:
1).Material: made from PA Nylon.
2).Grade of flame retardant: UL94V0
3).Metal material: brass platedtim
The transparent cover good for see the cable is a reliable connection.
Specification detail:

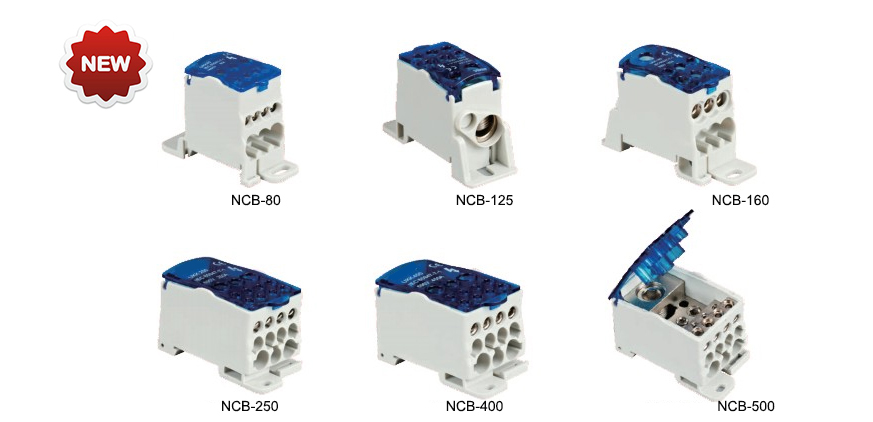

| Type | Current (Amps) | Voltage (V) IEC | Conductors with starfix temules X-section (mm2) | Q'TY of holes (PCS) | Dimension (L*W*H) |
| NCB-80 | 85 | 690 | 60-16 2.5-6 2.5-16 | x1 x4 x2 | 30*69*49mm |
| NCB-125 | 150 | 690 | 10-35 6-16 2.5-16 | x1 x4 x6 | 29*77*46mm |
| NCB-160 | 200 | 690 | 10-70 6-16 2.5-16 | x1 x4 x6 | 29*77*46mm |
| NCB-250 | 255 | 690 | 35-120 6-35 2.5-16 2.5-10 | x1 x2 x5 x4 | 47*96*50mm |
| NCB-400 | 335 | 690 | 98-185 6-35 2.5-16 2.5-10 | x1 x2 x5 x4 | 47*96*50mm |
| NCB-500 | 520 | 690 | 4*15.5*0.8-8*24 6-35 2.5-16 2.5-10 | x1 x2 x5 x4 | 49*96*50mm |
