Application:

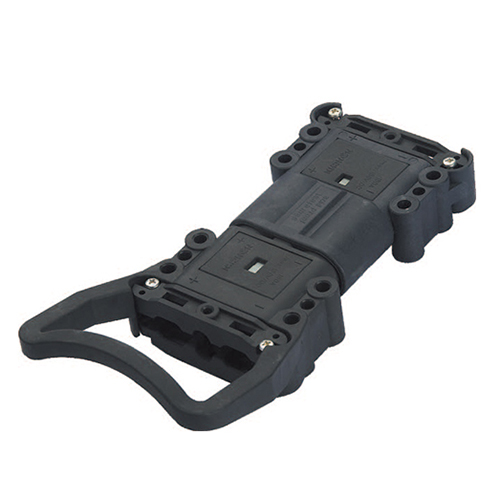

CHR series connectors are connected by ferrules, and the ends of the ferrules are pressed tightly by the elastic force of manganese steel. The current rating of this series is 80A, 160A, 320A
| Specificationsanddimensions | |||||||
| SpecificationItem | CHR80A | CHR160A | CHR320A | ||||
| WiringferruleinnerholesizeØ(mm) | 3.5 | 5 | 7.5 | 8.5 | 11 | 10.5 | 12.5 |
| Ratedcurrent(Ie) | 50A | 175A | 350A | ||||
| Ratedvoltage(Ue) | ≯150V | ||||||
| Maximumcurrentandduration | 4Ie,≯10s | ||||||

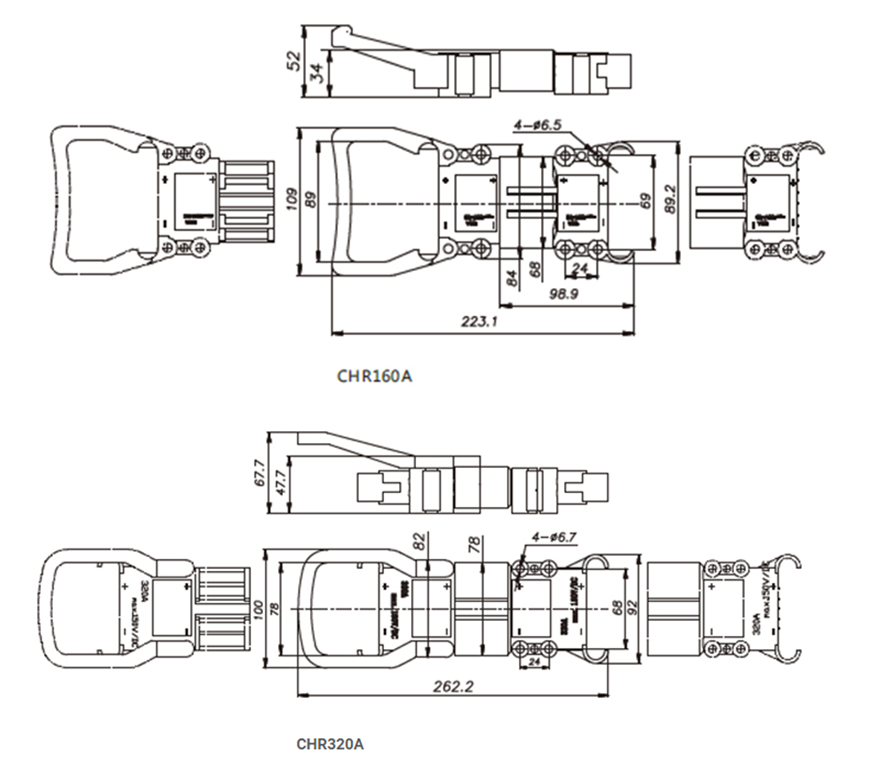

Outer demension:
