1.Application:
HMC modular contactor is applicable to alternative circuit with rated voltage up to 400V, rated current up to 24A and rated frequency 50/60Hz product circuit.
2.Construction and Feature:
Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance
3.Technical data

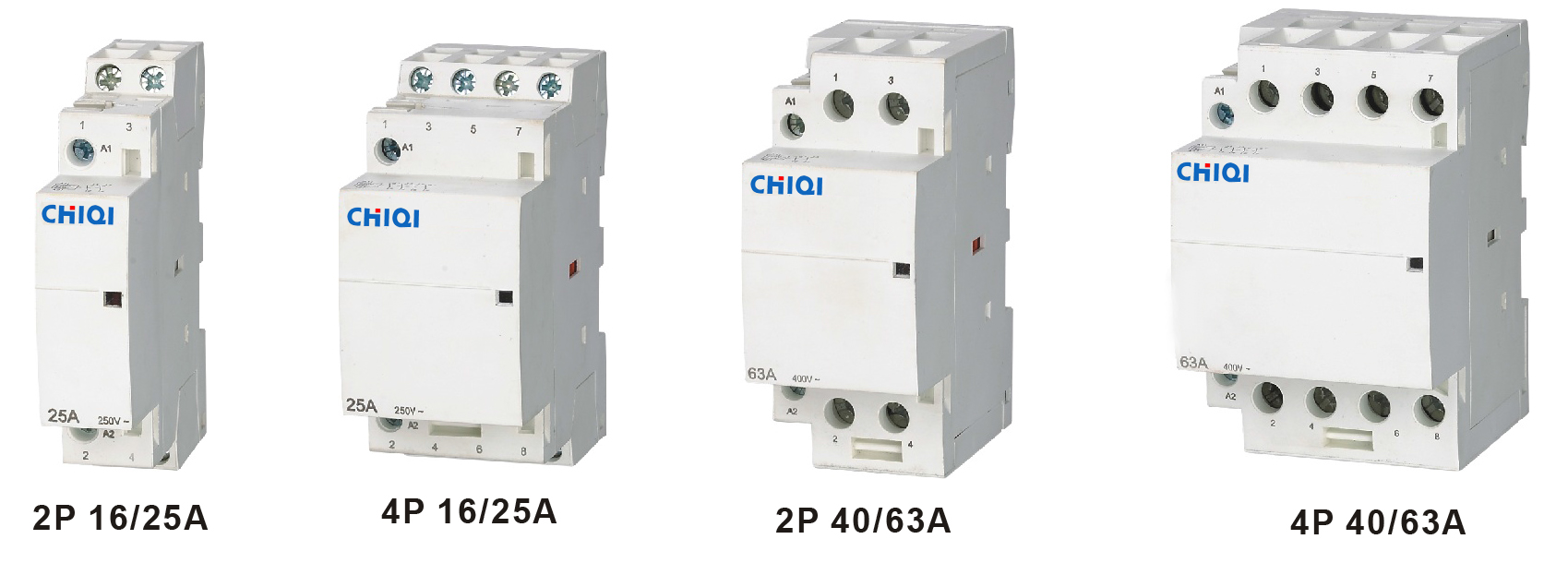

Rated current: 16A, 25A, 40A, 63A
Rated voltage: 220V/2P,400V/4P
Rated frequency: 50/60Hz
Control voltage: 24V, 220V-240V
Mechanical endurance:100,000 cycles
Electrical endurance:30,00 cycles
Ambient temperature: -25℃~+60℃
Connection terminal: pillar terminal with clamp
Installation type: standard din rail
4.Contact form
2P: 2N.O; 2N.C; 1N.O+1N.C
4P: 4N.O; 4N.C;3N.O+1N.C; 2N.O+2N.C

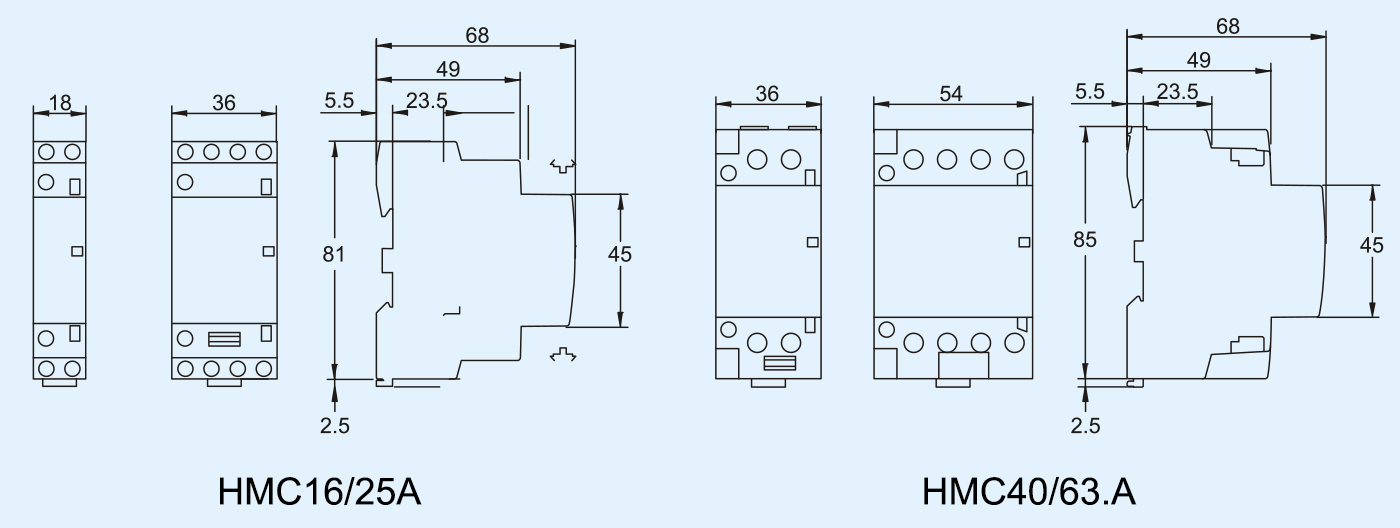

5.Diagram and dimensions (mm)
