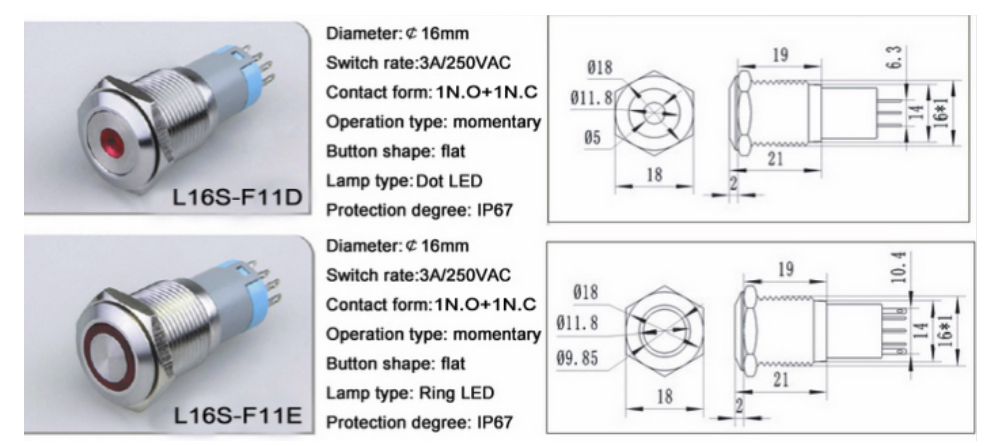

16mm L type with LED illuminated
Technical data sheet
| SPECIFICATION | L16S-F11D | L16S-F11E |
| Terminaltype: | pinterminal2x0.5mm | pinterminal2x0.5mm |
| Switching: | NO.3 | NO.3 |
| Maxswitchrate | 3A/250VAC | 3A/250VAC |
| Contactresistance | ≤50mΩ | ≤50mΩ |
| insulationresistance | ≥1000mΩ | ≥1000mΩ |
| Dielectricintensity | 2000VAC | 2000VAC |
| Operationtemperature | -20℃to+55℃ | -20℃to+55℃ |
| Mechanicallife | 1,000,000times | 1,000,000times |
| Electricallife | 200,000times | 200,000times |
| Panelthickness | 1-10mm | 1-10mm |
| Torque | 5-14Nm | 5-14Nm |
| Operationpressure | 2.5-4N | 2.5-4N |
| Operationtravel | 2.8MM | 2.8MM |
| IPdegree | IP67 | IP67 |
| Contactpoint | silverplatedgold | silverplatedgold |
| Buttonmaterial | stainlesssteel | stainlesssteel |
| cooperchrom-plated | cooperchrom-plated | |
| Bodymaterial | stainlesssteel | stainlesssteel |
| cooperchrom-plated | cooperchrom-plated | |
| Basematerial | PC | PC |
| RoHs | madetoorder | madetoorder |
| Lamptype | dotilluminatedLED | ringilluminatedLED |
| Ratedvoltage | 6V/12V/24V/110V/220V | 6V/12V/24V/110V/220V |
| Lightcolor |  | |
| LEDlife | 40000hours | 40000hours |
