Application:
Operation temperature: -40~140℃
Material: BMC (bough moulding compound)
SMC (sheet moulding compound)
Insert material: brass, iron, aluminium
Note: the insert material proformance, color and screw type can be order by customer
metric, English, American screw is available.
Specification:
| Specification | TYPE | |||||||
| TSM-20 | TSM-30 | TSM-40 | TSM-50 | TSM-55 | TSM-70 | TSM-401 | TSM-402 | |
| Tensile strength | 300 | 500 | 1000 | 1500 | 2000 | 1500 | 700 | 500 |
| Torque strength | 4 | 8 | 30 | 40 | 50 | 40 | 20 | 10 |
| Voltage withstand (kv) | 5 | 8 | 8 | 15 | 15 | 25 | 8 | 8 |
| Screw (mm) | 5 | 6 | 10 | 10 | 10 | 10 | 8 | 6 |
| Screw depth(mm) | 7 | 10 | 14 | 17 | 17 | 17 | 13 | 13 |

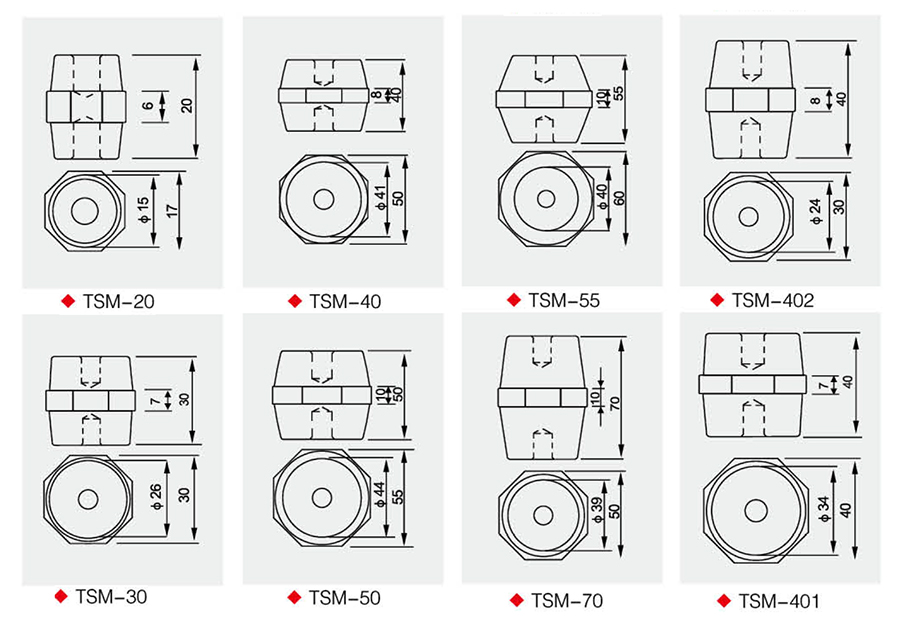

Drawing and dimension:
