Application:
1).Supplied with insulated back plate and transpartent protective front cover. Self-extinguishing 960 mounting methods.
2).Fix on din rail.
3).On plate with 2 screws.
4).When installing under a front plate, a blanking plate can be clipped on the front plate insulation protection on each bar
5).Each bar can be labelled using can 3tm
6).Confirm to standard EN60947-1
7).ICC:20KA peak

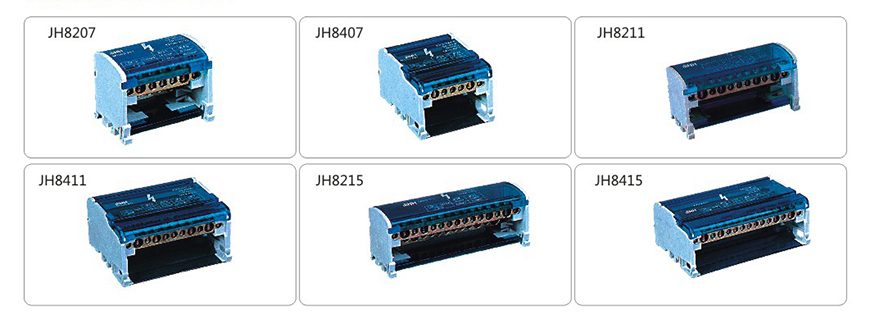

Products imagine:
Specification detail:
| Type | Busbar Spec | Number of busbar (PCS) | Conductor with X-section (mm2) | Conductor with X-section (mm2) | Dimension (L*W*H) |
| JH8207 | 5 x ∮5.3mm 2 x∮7.5mm | 2 | 1.5~6 6 ~16 | 2.5~6 10~25 | 65*42*50mm |
| JH8211 | 7 x∮5.3mm 2 x∮7.5mm 2 x∮9mm | 2 | 1.5~6 6~16 10~16 | 2.5~6 10~25 10~35 | 100*42*50mm |
| JH8215 | 11 x∮5.3mm 2 x∮7.5mm 2 x∮9mm | 2 | 1.5~6 6~16 10~16 | 2.5~6 10~25 10~35 | 135*42*50mm |
| JH8407 | 5 x∮5.3mm 2 x∮7.5mm | 4 | 1.5~6 6~16 | 2.5~6 10~25 | 65*85*50mm |
| JH8411 | 7 x∮5.3mm 2 x∮7.5mm 2 x∮9mm | 4 | 1.5~6 6~16 10~16 | 2.5~6 10~25 10~35 | 100*85*50mm |
| JH8415 | 11 x∮5.3mm 2 x∮7.5mm 2 x9mm | 4 | 1.5~6 6~16 10~16 | 2.5~6 10~25 10~35 | 135*85*50mm |
