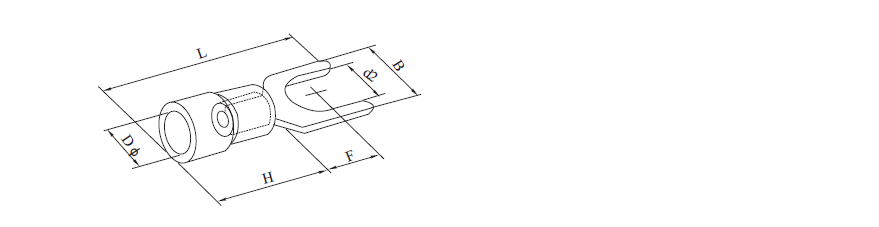

| Wire section area | Item NO. | AWG | Screw dia. d2(mm) | Dimension | Color | ||||
| B (mm) | L (mm) | F (mm) | H (mm) | D φ (mm) | |||||
0.5~1.5mm² (22-16AWG) Imax=19A | SV1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | red |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | ||||
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | ||||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | ||||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS1.25-6 | 1/4 | 6.5 | 9.5 | 21.2 | 6.5 | ||||
| SVL1.25-6 | 1/4 | 6.5 | 12.0 | 21.2 | 11.0 | ||||
1.5~2.5mm ² (16~14AWG) Imax=27A | SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | blue |
| SVS2-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | ||||
| SVL2-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | ||||
| SVS2-4 | #8 | 4.3 | 6.0 | 21.2 | 6.5 | ||||
| SVM2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | ||||
| SVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | ||||
| SVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | ||||
| SVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | ||||
| SVS2-6 | 1/4 | 6.5 | 9.5 | 21.2 | 11.0 | ||||
| SVL2-6 | 1/4 | 6.5 | 12.0 | 21.2 | 7.0 | ||||
2.5~4mm² (14~12AWG) Imax=37A | SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | 12.5 | 6.2 | black |
| SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 12.1 | ||||
| SV3.5-6 | 1/4 | 6.5 | 12.0 | 28.0 | 7.5 | ||||
4~6mm² (12~10AWG) Imax=48A | SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | yellow |
| SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | ||||
| SVL5.5-4 | #8 | 4.3 | 9.0 | 23.9 | 7.5 | ||||
| SV5.5-5 | #10 | 5.3 | 9.0 | 23.9 | 7.5 | ||||
| SVS5.5-6 | 1/4 | 6.5 | 9.0 | 23.9 | 7.5 | ||||
| SVL5.5-6 | 1/4 | 6.5 | 12.0 | 31.2 | 12.0 | ||||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | ||||
