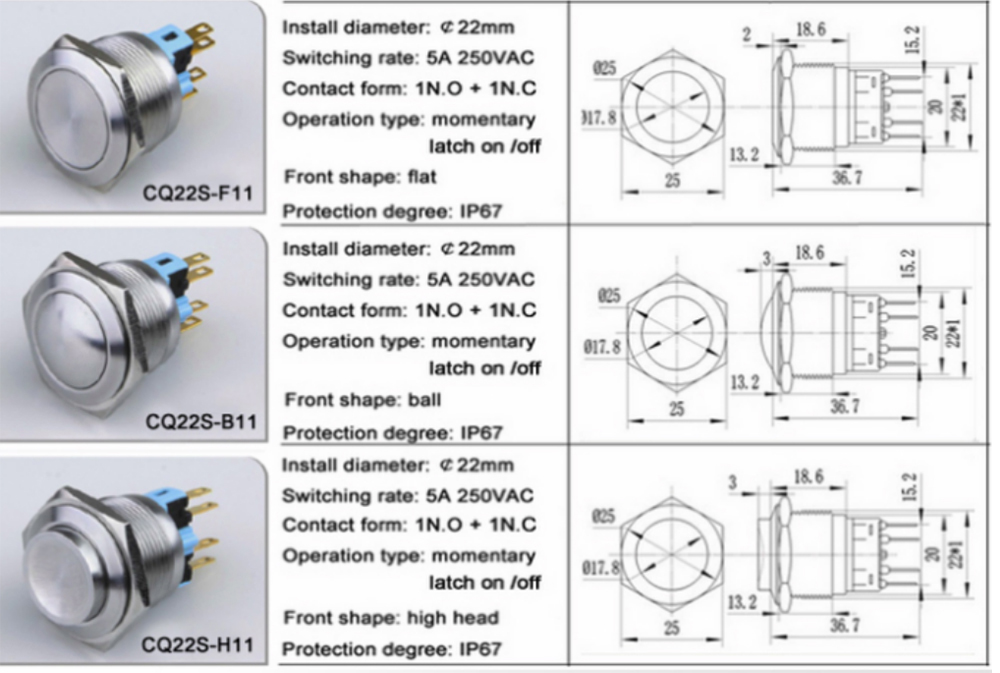

22mm stainless steel push button switch (1N.O+1N.C type)
Technical data sheet
| SPECIFICATION | CQ22S-F11 | CQ22S-B11 | CQ22S-H11 |
| Terminaltype: | Pinterminal2.8x0.5mm | Pinterminal2.8x0.5mm | Pinterminal2.8x0.5mm |
| Switching: | NO.2 | NO.2 | NO.2 |
| Maxswitchrate | 5A/250VAC | 5A/250VAC | 5A/250VAC |
| Contactresistance | ≤50mΩ | ≤50mΩ | ≤50mΩ |
| insulationresistance | ≥1000mΩ | ≥1000mΩ | ≥1000mΩ |
| Dielectricintensity | 2000VAC | 2000VAC | 2000VAC |
| Operationtemperature | -20℃to+55℃ | -20℃to+55℃ | -20℃to+55℃ |
| Mechanicallife | 1,000,000times | 1,000,000times | 1,000,000times |
| Electricallife | 200,000times | 200,000times | 200,000times |
| Panelthickness | 1-6mm | 1-6mm | 1-6mm |
| Torque | 5-14Nm | 5-14Nm | 5-14Nm |
| Operationpressure | about5.5N | about5.5N | about5.5N |
| Operationtravel | 2.5MM | 2.5MM | 2.5MM |
| IPdegree | IP67 | IP67 | IP67 |
| Contactpoint | silverplatedgold | silverplatedgold | silverplatedgold |
| Buttonmaterial | stainlesssteel | stainlesssteel | stainlesssteel |
| cooperchrom-plated | cooperchrom-plated | cooperchrom-plated | |
| Bodymaterial | stainlesssteel | stainlesssteel | stainlesssteel |
| cooperchrom-plated | cooperchrom-plated | cooperchrom-plated | |
| Basematerial | PC | PC | PC |
| RoHs | madetoorder | madetoorder | madetoorder |
