19mm stainless steel push button switch (pin connection type)
Technical data sheet

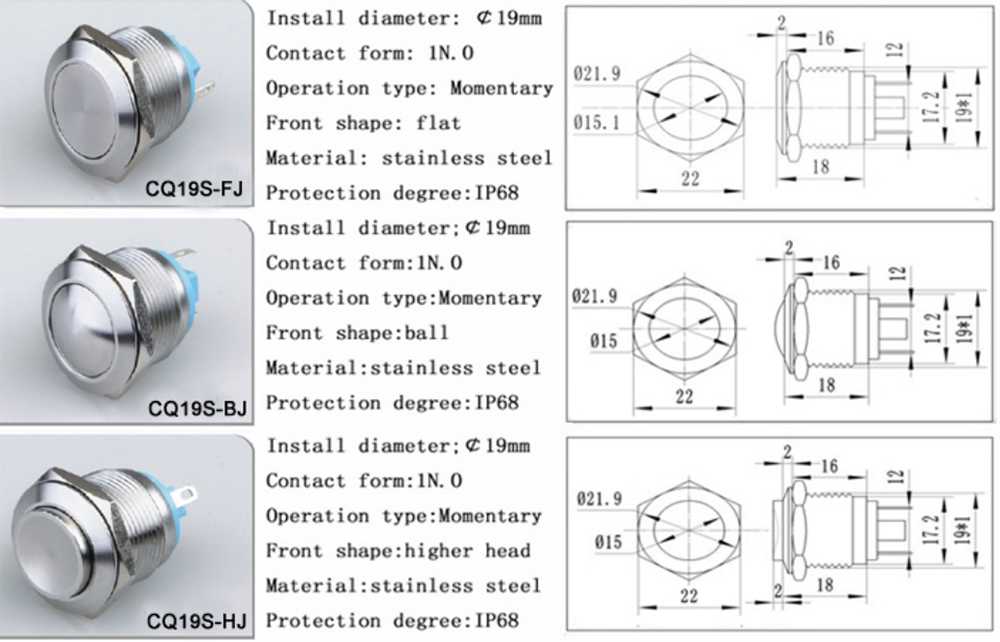

| SPECIFICATION | CQ19S-FJ | CQ19S-BJ | CQ19S-HJ |
| Terminaltype: | Pinterminal2x0.5mm | Pinterminal2x0.5mm | Pinterminal2x0.5mm |
| Switching: | **** | **** | **** |
| Maxswitchrate | 5A/250VAC | 5A/250VAC | 5A/250VAC |
| Contactresistance | ≤50mΩ | ≤50mΩ | ≤50mΩ |
| insulationresistance | ≥1000mΩ | ≥1000mΩ | ≥1000mΩ |
| Dielectricintensity | 2000VAC | 2000VAC | 2000VAC |
| Operationtemperature | -30℃to+50℃ | -30℃to+50℃ | -30℃to+50℃ |
| Mechanicallife | 1,000,000times | 1,000,000times | 1,000,000times |
| Electricallife | 200,000times | 200,000times | 200,000times |
| Panelthickness | 1-10mm | 1-10mm | 1-10mm |
| Torque | 4-15N | 4-15N | 4-15N |
| Operationpressure | about4N | about4N | about4N |
| Operationtravel | 1.8MM | 1.8MM | 1.8MM |
| IPdegree | IP67 | IP67 | IP67 |
| Contactpoint | silverplatedgold | silverplatedgold | silverplatedgold |
| Buttonmaterial | stainlesssteel | stainlesssteel | stainlesssteel |
| cooperchrom-plated | cooperchrom-plated | cooperchrom-plated | |
| Bodymaterial | stainlesssteel | stainlesssteel | stainlesssteel |
| cooperchrom-plated | cooperchrom-plated | cooperchrom-plated | |
| Basematerial | PC | PC | PC |
| RoHs | madetoorder | madetoorder | madetoorder |
