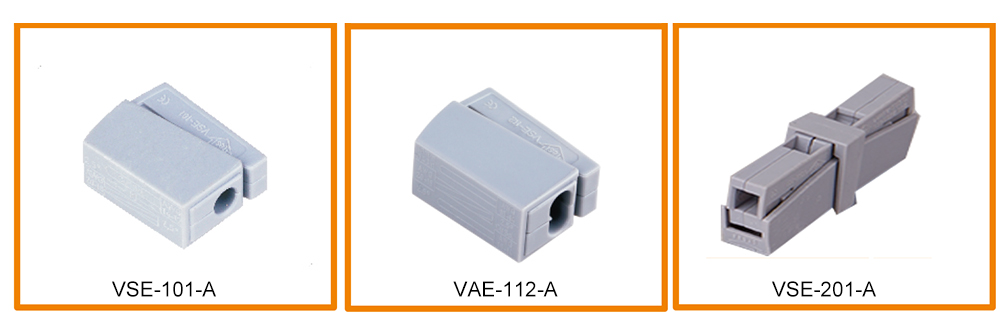

1.Lighting wire connector:
2.Specification detail:
| Type | VSE-101-A | VSE-112-A | VSE-201-A |
| Rated voltage | 400V | 400V | 400V |
| Rated surge voltage | 4KV | 4KV | 4KV |
| Norminal current | 24A | 24A | 24A |
| Solid size | 1~2.5mm(14~12AWG) | 1~2.5mm(14~12AWG) | 1~2.5mm(14~12AWG) |
| Solid connection | 0.5~2.5mm(20~16AWG) | 0.5~2.5mm(20~16AWG) | 0.5~2.5mm(20~16AWG) |
| Strand connection | 0.5~2.5mm(20~16AWG) | 0.5~2.5mm(20~16AWG) | 0.5~2.5mm(20~16AWG) |
| Strip length size | 9~11mm(0.35~0.43 inch) | 9~11mm(0.35~0.43 inch) | 9~11mm(0.35~0.43 inch) |
| Product size(L*W*H) | 20.5*8.5*15.5mm. | 20.5*10*15.5mm. | 40*8.5*15mm. |

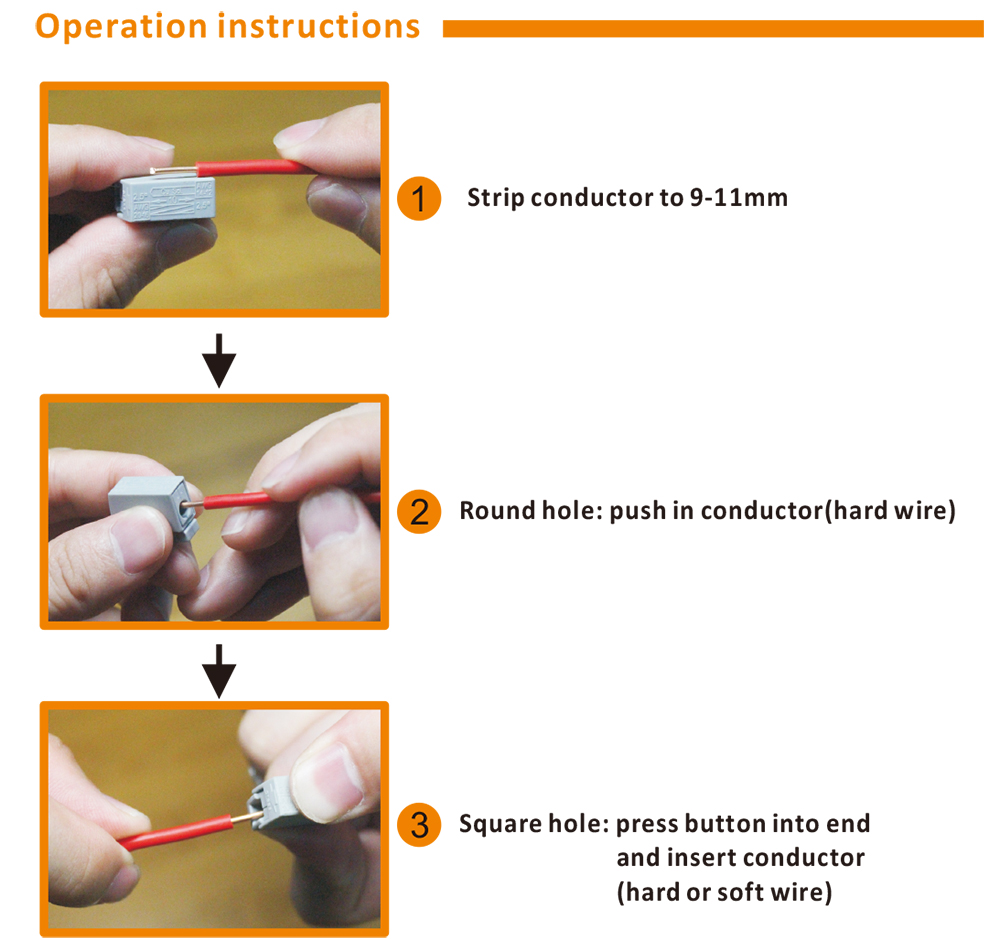

3.Operation note:
