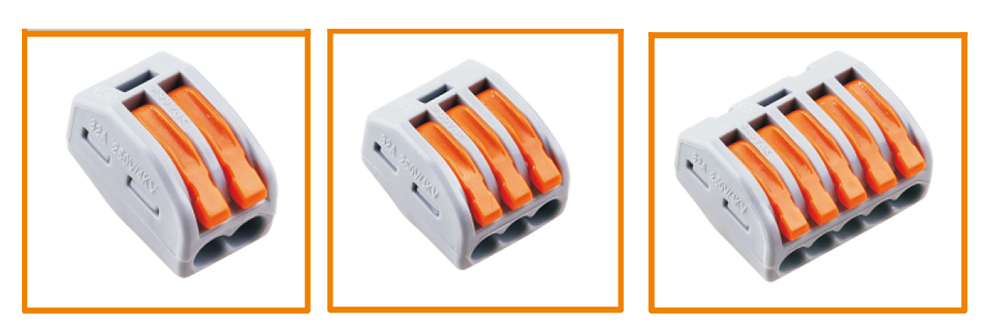

1.Commpact splicing connector
2.Specification detail:
| Type | VSE-412-A | VSE-413-A | VSE-415-A |
| Rated voltage | 400V | 400V | 400V |
| Rated surge voltage | 4KV | 4KV | 4KV |
| Norminal current | 32A | 32A | 32A |
| Solid size | 0.08~2.5mm(28~12AWG) | 0.08~2.5mm(28~12AWG) | 0.08~2.5mm(28~12AWG) |
| Strand connection | 0.08~4mm(28~12AWG) | 0.08~4mm(28~12AWG) | 0.08~4mm(28~12AWG) |
| Strip length size | 9~10mm(0.35~0.39 inch) | 9~10mm(0.35~0.39 inch) | 9~10mm(0.35~0.39 inch) |
| Product size(L*W*H) | 20.5*12.4*14.5mm | 20.5*17*14.5mm. | 20.5*26.6*14.5mm. |

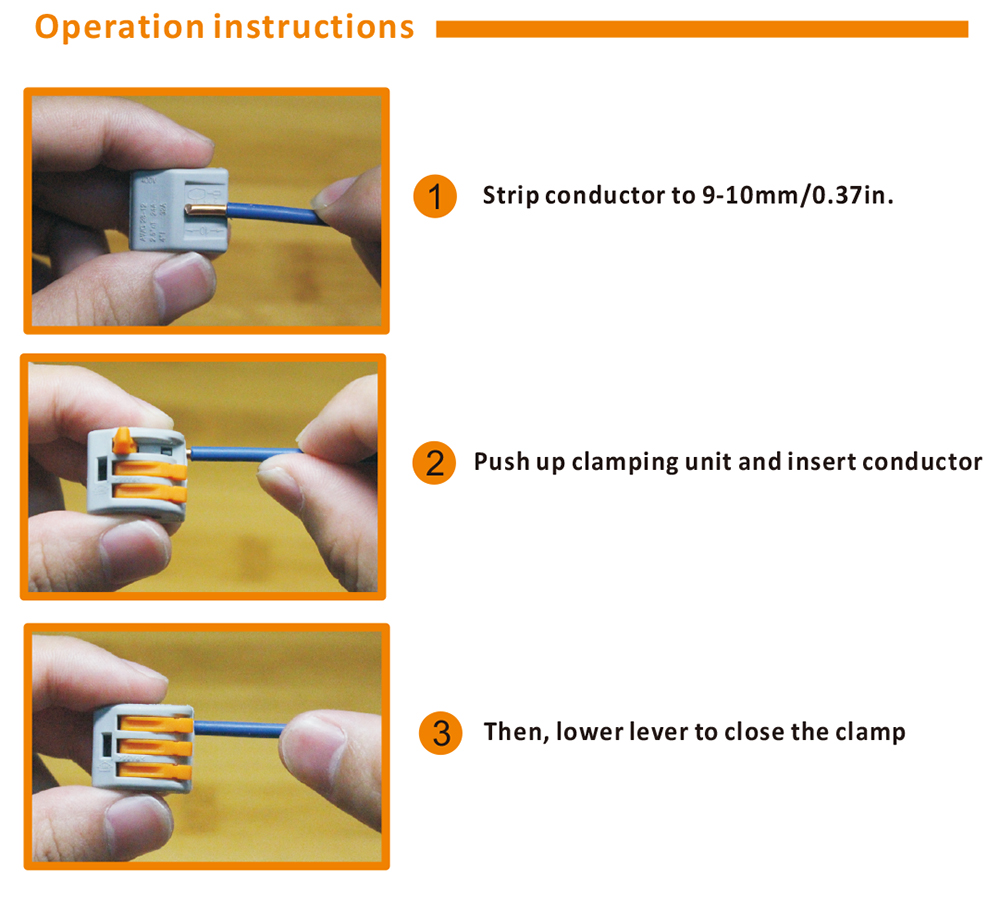

3.Operation note:
