Application:
The NDP split core type transformer has been designed for installing easily in circuit system and network. It is improved from DP model, its casting materials are made from high extinguishing PA66, according to IEC6004-1, BS7626, VDE0414-44-1, UI94.
Feature:
Special designed terminal
Convenient for secondary connection
The primary terminals are installed and connected without any supply interruption
Specification:
| Type | Ratio | burden(VA) | Weight/CTN | Packing Q'TY | Order MOQ | |
| Class 0.5 | Class1.0 | (KGS) | (PCS/CTN) | PCS | ||
| NDP-816 | 1000/5A | 10 | 15 | 23 | 6 | 6 |
| NDP-816 | 1500/5A | 10 | 15 | 23 | 6 | 6 |
| NDP-816 | 2000/5A | 15 | 20 | 24 | 6 | 6 |
| NDP-816 | 2500/5A | 20 | 25 | 24 | 6 | 6 |
| NDP-816 | 3000/5A | 25 | 30 | 25 | 6 | 6 |
| NDP-816 | 4000/5A | 30 | 40 | 26 | 6 | 6 |
| NDP-816 | 5000/5A | 30 | 40 | 26 | 6 | 6 |

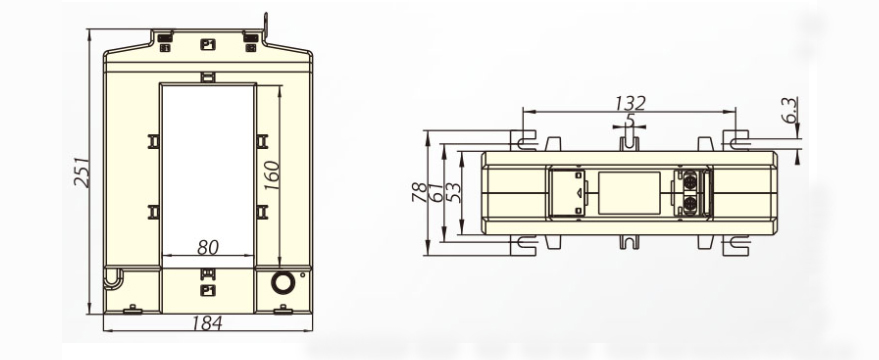

Dimension:
