Application:
BH-100 indoorcurrent transformer is casting resin insulated. It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50/60Hz rated voltage 0.6kV.
Operation condition:
Specification:
| Type | Ratio | Burden (VA) | Centroid turn number | |
| Class 1.0 | Class 0.5 | |||
| BH-100 | 1000/5A | 10 | 10 | 1 |
| 1200/5A | 20 | 20 | 1 | |
| 1500/5A | 20 | 20 | 1 | |
| 2000/5A | 20 | 20 | 1 | |
| 2500/5A | 40 | 40 | 1 | |

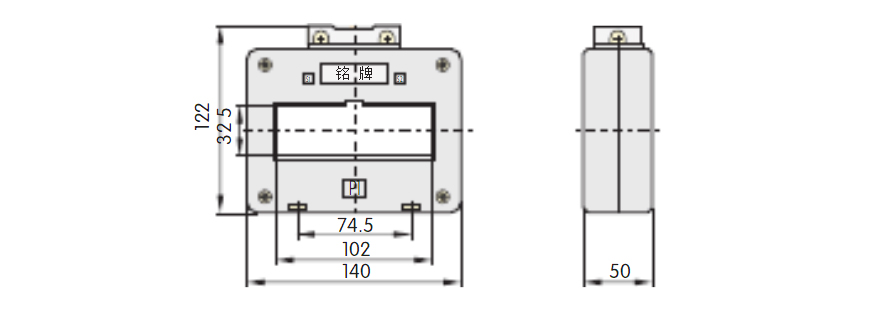

Dimension:
